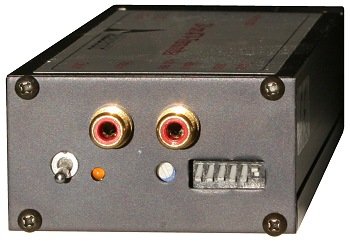

Parabolic ATV-TX
| Type: |
Amateur TV transmitter |
| Frequency Range: |
1240-1279 MHz (1 MHz steps) |
| Modes: |
FM-video 27 MHz. Audio sub-carrier (mono) |
| RF Power Output: |
200 mW |
| Voltage: |
11-14 VDC |
| Current Drain: |
Max 400 mA |
| Impedance: |
50 ohms, N |
| Dimensions (W*H*D): |
157*35*64 mm |
| Weight: |
? Kg |
| Manufactured: |
Sweden, 199x-2006 (By Labetech AB) |
| Other: |
|
| Related Documents: |
DIP switch settings (90.2 Kb) |
 |
